Industrial and Commercial Gas Services in Derby

Gas Services for Aerospace, Rail and Precision Engineering

Derby has one of the highest concentrations of advanced manufacturing jobs in the country. Aero engines at Sinfin, trains at Litchurch Lane, and a deep supply chain of machining, casting, coating and testing firms all operate here. Car production at Burnaston is a few miles to the south west.

These are demanding clients. Gas feeds heat treatment furnaces, test facilities, paint and cure ovens, wash plants and the heating for very large buildings. Commercial Gas Certificate provides the installation, testing, purging and certification that keeps those systems safe and documented.

What Does Industrial Gas Work in Derby Involve?

Planned Shutdowns: Testing and Purging to a Programme

Large plants release their gas mains once or twice a year. Everything that needs the gas off has to be done inside that window: valve replacements, new branches, inspections, tightness testing and the purge back into service.

We plan this in advance with your engineering team. The pipework volume is calculated, the purge procedure is written, vent points are agreed and the nitrogen is ordered. A risk assessment under the Dangerous Substances and Explosive Atmospheres Regulations is prepared, and the work is carried out under your permit to work system.

Derby manufacturers are audited closely, so the records matter. Test certificates and purge records are issued before the plant goes back into production.

Nitrogen Purging for Large Pipework

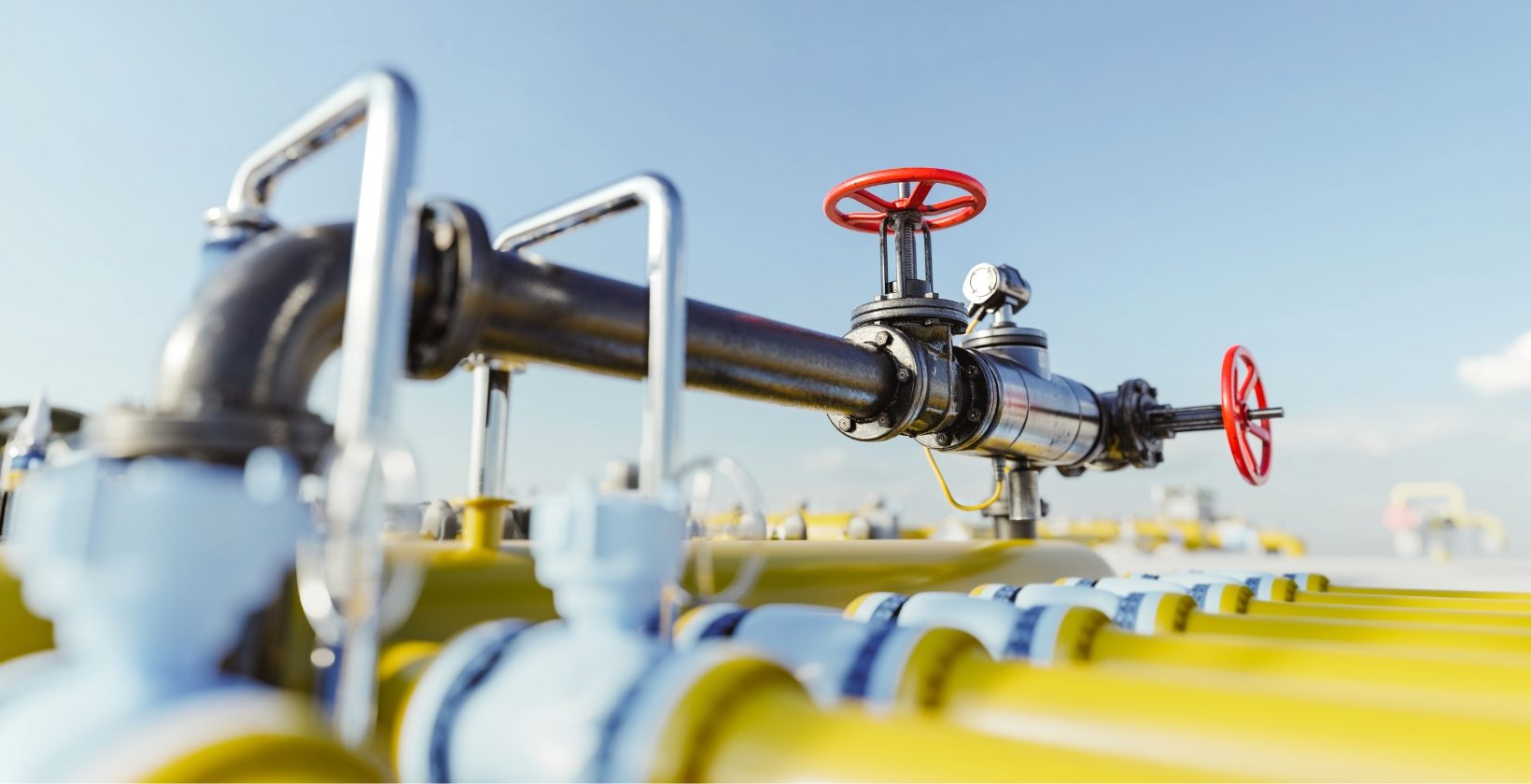

A long 100 mm or 150 mm main holds a large volume. Letting gas straight into that much air would create a flammable mixture inside the pipe.

Nitrogen purging avoids this. Nitrogen displaces the air and is vented at a safe point outdoors, with oxygen readings taken until the level is low enough. Gas then displaces the nitrogen, and readings continue until the pipe holds gas only. The same process in reverse is used to make a main safe before it is cut.

Do You Need Hot Tapping or a Shutdown?

If a new branch is needed and the main cannot be released, hot tapping may be the answer. A fitting is attached to the live pipe, a valve is mounted on it and the pipe wall is drilled through the valve under pressure. The main stays in service throughout.

It is not right for every job. Pipe material, wall condition, pressure and access all have to be suitable. We will tell you plainly whether a hot tap or a short planned shutdown is the better option.

Pride Park, the City Centre and the Cathedral Quarter

Away from the factories, Derby has a busy commercial core. Pride Park holds offices, the football stadium, the arena and the college. The city centre has a large shopping centre, new development at Becketwell and a growing number of restaurants and bars around the Cathedral Quarter and Friar Gate.

Work here includes plant room boilers, kitchen pipework, extraction interlocks and annual inspections. See commercial catering and commercial heating systems.

You can read more about our full range of commercial gas services, including gas hot tapping services and gas testing & gas purging, or see the other areas we cover, such as Nottingham and Stoke-on-Trent. Commercial Gas Certificate works nationwide.

Mills on the Derwent

The Derwent Valley Mills World Heritage Site begins at the Silk Mill in the city centre and runs north through Darley Abbey, Belper and Cromford. Many of the mills now hold offices, studios, restaurants and wedding venues.

Converting and maintaining them needs care. Pipe routes must respect historic fabric, and external pipework, flues and meter housings may need listed building consent. We plan routes with the building in mind and keep pipework accessible for future inspection.

Commissioning Records and Gas Safety Certificates

Employers must keep gas installations safe under the Gas Safety (Installation and Use) Regulations 1998. Annual inspection is the accepted standard. We inspect appliances and pipework and issue a gas safety record each time. See commercial gas certificates.

All records are issued digitally, which suits quality systems and customer audits.

How Is Old Plant Decommissioned?

When a furnace, oven or boiler is retired, its gas supply should be retired with it. We trace the branch back to a suitable isolation point, purge the gas out, cut back and cap the pipe, and label it. The live pipework is then tightness tested and the line drawing updated.

Cadent, the City Council and the County

Cadent runs the gas distribution network in the East Midlands and owns the pipework up to the emergency control valve. New supplies, larger meters and disconnections are arranged with Cadent or through your gas supplier.

Derby City Council is the highway authority within the city boundary. Derbyshire County Council covers the surrounding districts, including Belper, Ripley, Ilkeston and Swadlincote. A permit is needed from the relevant authority before excavating in a public road or footway.

Surrounding Towns and the DE Postcode Area

We cover Derby and the whole DE postcode area, including Sinfin, Spondon, Raynesway, Mickleover, Burnaston, Burton upon Trent, Ashbourne, Belper, Ripley, Ilkeston and Swadlincote. Castle Donington and the freight hub beside East Midlands Airport are close by.

We also work in Nottingham, Lichfield, Loughborough and the rest of the UK.

Urgent Repairs

If you smell gas, call the National Gas Emergency Service on 0800 111 999 and follow your site emergency procedure. Our emergency gas repairs team covers Derby at any hour for the repair, retest and purge.
